Mud Pumps
Introduction
Mud Pumps
Alpha Global is a premier manufacturer, supplier, and exporter of high-performance Self-Priming Centrifugal Mud Pumps. Engineered for heavy-duty industrial waste and fluid transfer, our mud pumps are designed to handle solids and muddy water without clogging. We provide these robust solutions to construction sites, effluent plants, and industrial facilities worldwide.
Our Range of
Mud Pumps
Robust and efficient, these pumps are designed for handling abrasive slurries and mud. With self-priming capability and horizontal construction, they ensure smooth operation, high performance, and reliable durability in mining, construction, and industrial applications.
| Power | As required |
| Pump Type | Centrifugal Pump |
| Frequency | 50 Hz |

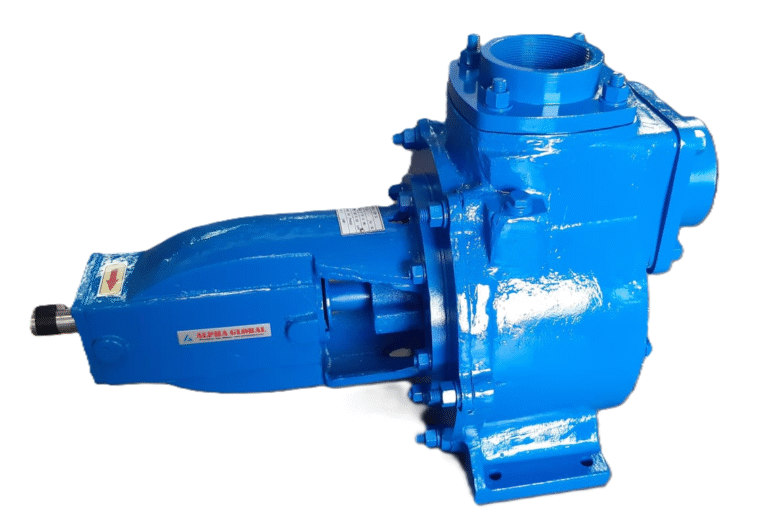

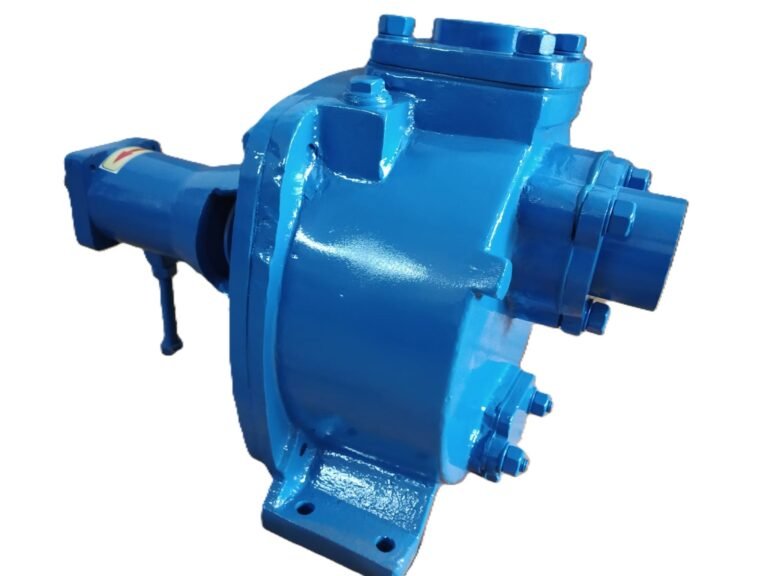

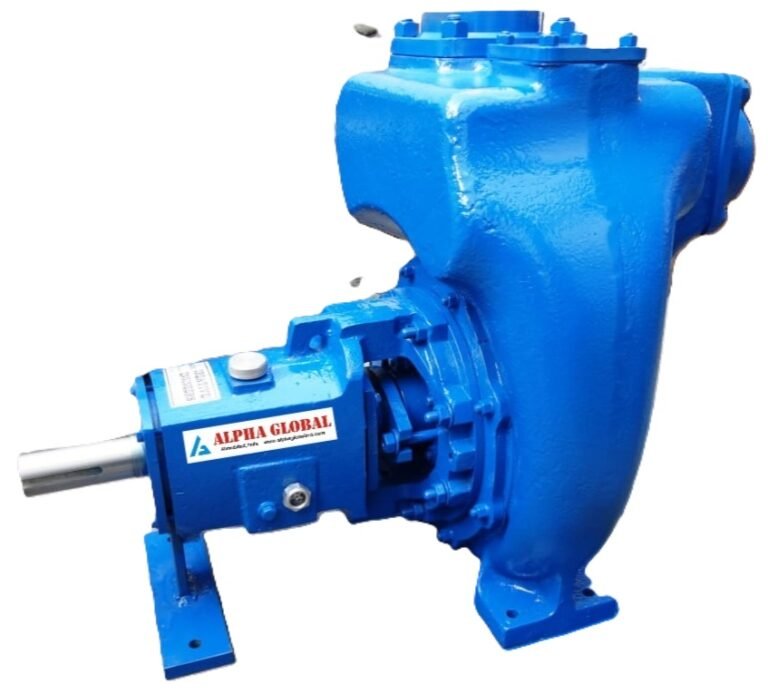

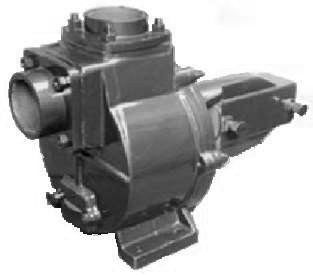

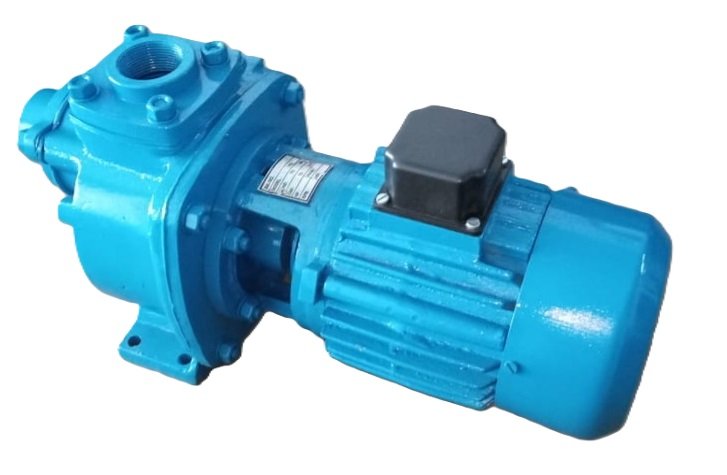

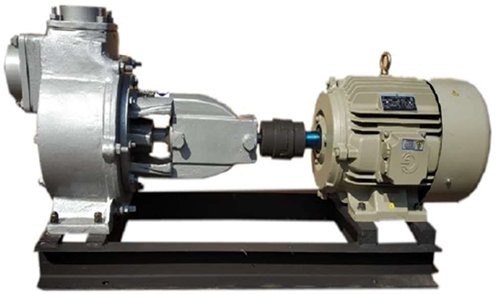

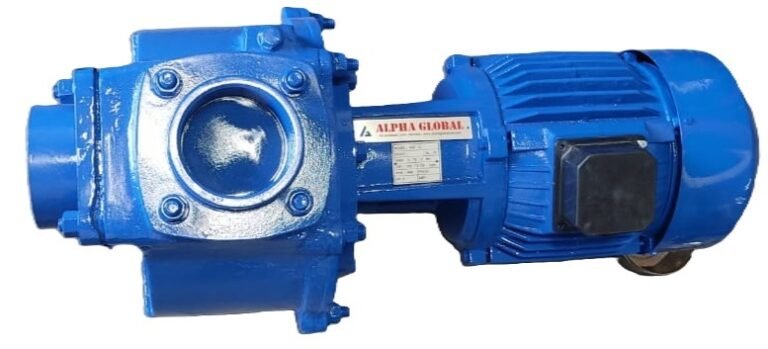

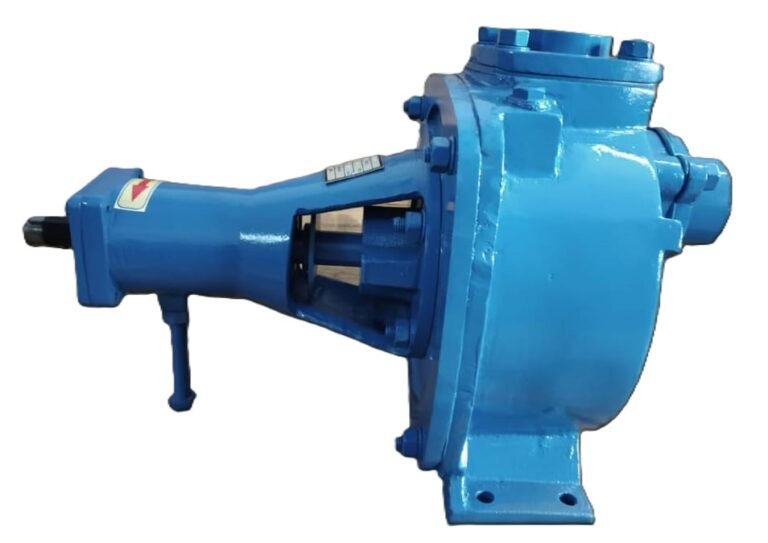

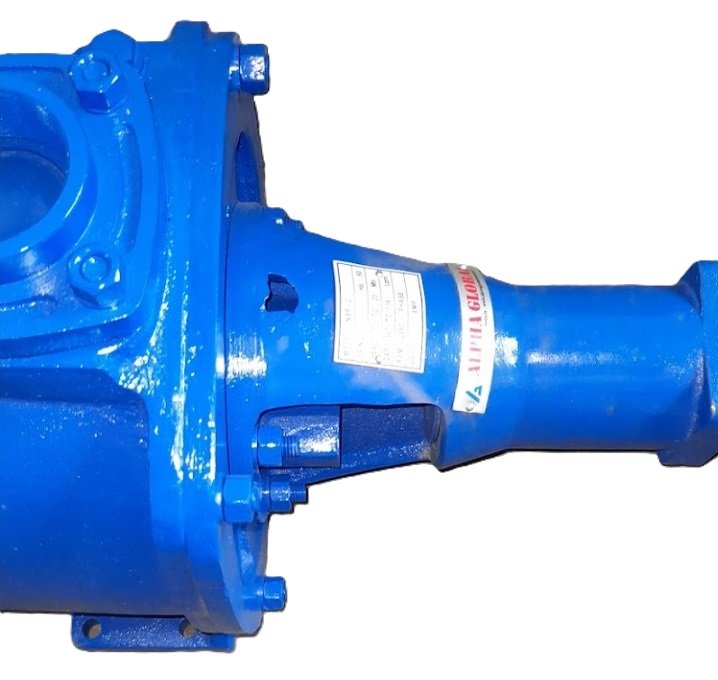

Alpha Global produces and supplies Horizontal Self Priming Centrifugal Mud Pumps in a wide range of capacities. These pumps feature an excellent quick automatic priming action that functions without a foot valve. Designed with a back-pull-out construction, they allow for easy maintenance and repairs without disturbing the connected pipelines. With non-clog impellers and dynamically balanced rotating parts, these pumps ensure high efficiency and minimal vibration during operation.
Technical Specifications :
| Feature | Details |
|---|---|
| Type | Horizontal Self-Priming Centrifugal |

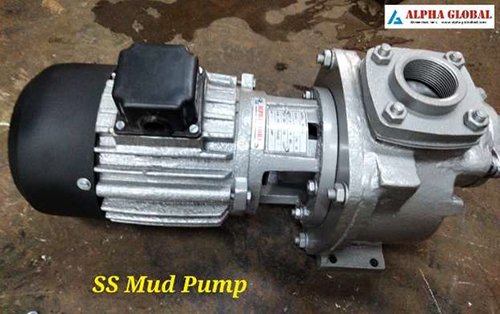

| Material (MOC) | Cast Iron (CI), SS-316, SS-316L, PP, PVDF |
| Max Flow Rate | Up to 2500 LPM |
| Max Head | Up to 35 Meters |
| Solid Handling | Up to 16 mm (Dia) |
| Priming Lift | Up to 8 Meters |
| Testing Standard | Tested at 2900 RPM / 1450 RPM with clear water |
Why Choose
Alpha Global's Mud Pumps ?
Quick Automatic Priming
Features excellent quick automatic priming action, eliminating the need for a foot valve, and can achieve a lift up to 8 metres.
Air Release During Priming
Includes an automatic air release mechanism that operates during the priming process.
Back Pull-Out Design
The back pull design allows for easy maintenance as the rotating parts can be serviced without disturbing the connected pipelines.
Solids Handling
Equipped with non-clog impellers that can effectively handle solid particles up to 16 mm.
High Efficiency
Benefits from a good hydraulic design which contributes to better overall efficiency.
Reduced Vibration
Features dynamically balanced rotating parts to ensure fewer vibrations during operation.
Cost-Effective Maintenance
Designed with minimum parts to allow for fast repairing at low cost.
Applications of
Mud Pumps
Alpha Global's Horizontal Self-Priming Centrifugal Mud Pump is a robust centrifugal pump engineered with non-clog impellers and self-priming ability. This allows it to quickly evacuate air and handle fluids with high concentrations of solids (up to 16 mm), such as muddy water and sewage, making it essential for heavy-duty dewatering and waste transfer where traditional pumps would clog.
- Pumping muddy water, sewage, polluted liquids, solid, and in swimming pool (Public utilities)
- Dewatering Basements, Trenches, and Construction sites
- Onboard ship (as bilge, for desk wash & engine cooling)
- Petroleum product, Ceramic product Chemicals, Thermal plants (Industrial)
- Tiles & Marble factories, effluent plants (Manufacturing & Waste Management)
