PP PVDF Pumps
Introduction
PP PVDF Pumps
At Alpha Global, we specialize in manufacturing high-performance Polypropylene (PP) Pumps and Polyvinylidene Fluoride (PVDF) Pumps designed to meet the diverse needs of various industries. Our PP pumps are engineered for efficiency, durability, and reliability, ensuring optimal performance in handling corrosive and aggressive fluids.
Our Range of
PP PVDF Pumps
Alpha Global produces and supplies PP/PVDF centrifugal pumps designed for total pumping solutions in demanding environments. The wetted parts are manufactured from chemically inert materials like Polypropylene or PVDF to ensure zero metallic contamination.

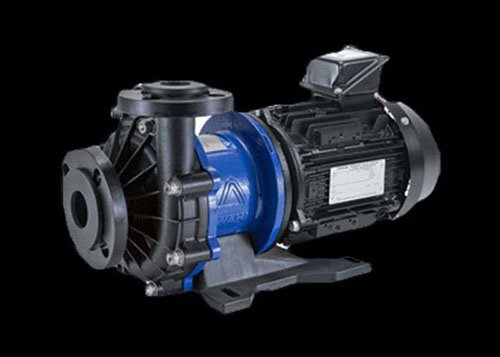

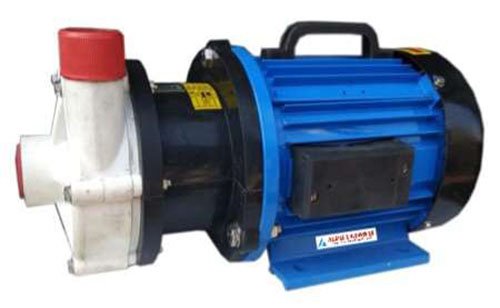

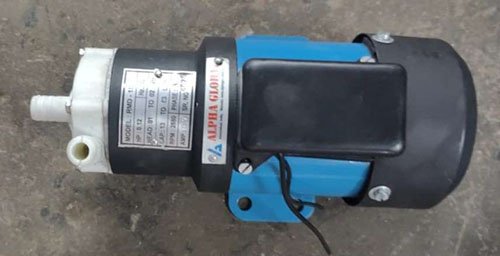

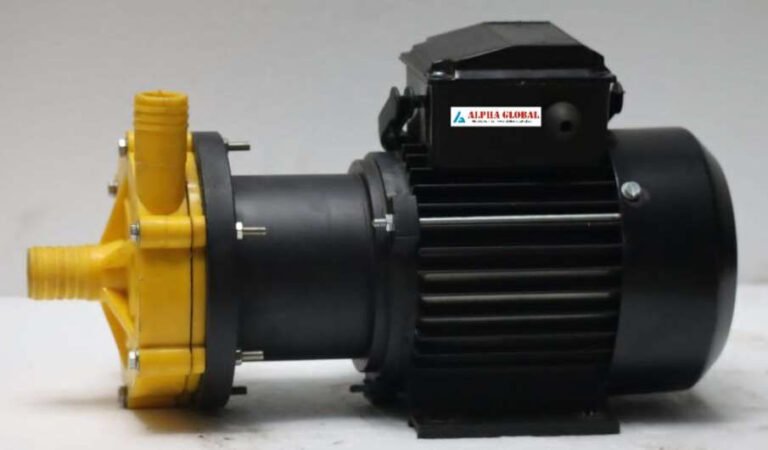

The Series AGRMD pumps are seal-less magnetic-driven pumps made from PP and PVDF. They are 100% leak-proof as they do not use a shaft seal. The rotation is provided by a magnetic drive that uses high-power permanent rare earth magnets, ensuring high mechanical efficiency and zero slippage. These pumps are available in a mono-block type with standard TEFC motors and flame-proof motors.
Technical Specifications
| Parameter | Specification |
| Range | Capacity from 10 LPM up to 750 LPM |
| Head | Up to 40 meters |
| Operating Temp | PP up to 80°C, PVDF up to 110°C |
| Special Pumps | Available for high temperatures up to 150°C |
| Material | Polypropylene glass-filled, PVDF (Poly Vinyl Dene Fluoride) |

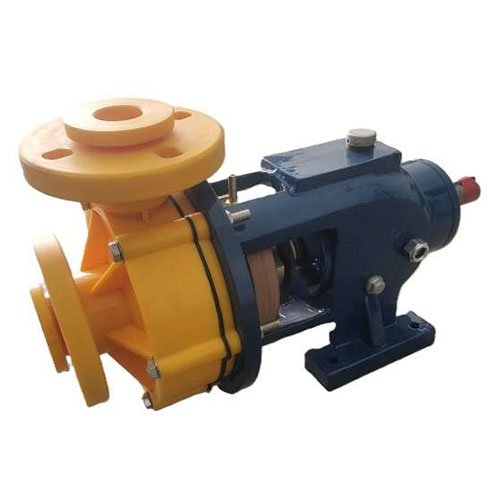

Alpha Global’s centrifugal PP pumps are available in both horizontal and vertical designs and are used in industries such as dairy, food & beverages, and chemicals. They are designed with a single, jointless casing made from injection-molded polypropylene, PVDF, or UHMWPE. The semi-open impeller is hydraulically balanced for high efficiency.
Technical Specifications
| Component | Material of Construction |
| Casing | Injection-molded polypropylene, PVDF, or UHMWPE |
| Impeller | Compressor-molded polypropylene, PVDF, or UHMW |
| Shaft | SS 304 protected by a shaft sleeve of alloy-20 or ceramic |
| Bearing Housing | Heavy-duty graded casting |
| Bearings | SKF Ball Bearing |
| Mechanical Seal | Rotary part is glass-filled Teflon, and the stationary part is high-alumina ceramic |
Why Choose
Alpha Global's PP PVDF Pumps ?
Excellent Chemical Resistance
Constructed from Polypropylene (PP) or Polyvinylidene Difluoride (PVDF), making them ideally suitable for handling corrosive chemicals, toxic and fuming liquids, and acids.
Seal-less Magnetic Drive (Optional)
100% Leak Proof Magnetic Drive (AGRMD Series) with no shaft seal required, eliminating leakage problems and providing zero slippage.
Wide Temperature Tolerance
Handles high temperatures depending on the material: PP up to 60oC, PPH up to 100 0C, and PVDF up to 115 0 C. Special Magnetic Pumps are available for temperatures up to 1500 C.
Friction-Free Operation
Magnetic drive models ensure friction-free operation for reduced power consumption.
Design Versatility
Available in both Horizontal as well as Vertical Centrifugal design.
Flow Range
Capacity up to 180M3 /hr and Head up to 60 meters.
Target Applications
Used across industries like Chemical, Fertilizers, ETP, Electroplating, and Pharmaceuticals.
Applications of
Industrial PP PVDF Pumps
Alpha Global's Polypropylene (PP) and Polyvinylidene Difluoride (PVDF) Pumps are robust, non-metallic centrifugal pumps engineered for handling highly corrosive media and are used across a wide spectrum of industrial applications:
-
Chemical and Fertilizers
-
Oil Gas & Petrochemicals
-
Refineries
-
Dyes & Intermediate Industries
-
Effluent Treatment Plants (ETP)
-
Drugs & Pharmaceuticals
-
Dairy and Food & Beverages
-
Gas Washing Plants
-
Rayon Plants
-
Water treatment Plant
-
Fertilizer Plants
-
Thermal and atomic power Plants
-
De-scaling of Tubes
-
Excellent for Vacuum ejectors
-
Paper & Pulp Industries
-
Caustic soda Plants
-
Phosphoric Acid Plants
-
Electro Plating Plants
Watch Our PP PVDF Pump in Working
PP PVDF Pumps
What are the benefits of a seal-less magnetic drive pump?
Our AGRMD series magnetic drive pumps are 100% leak-proof because they do not use a traditional shaft seal. This eliminates the risk of leakage, making them the safest choice for handling toxic, fuming, and expensive chemicals.
What is the maximum operating temperature for PP and PVDF pumps?
Standard Polypropylene (PP) pumps can handle up to 60°C, while PPH models go up to 100°C. For higher temperature applications, our PVDF pumps can handle up to 115°C, with specialized magnetic pumps available for up to 150°C.
Are your plastic pumps resistant to fuming acids?
Yes, our pumps are constructed from chemically inert materials like injection-molded PP, PVDF, or UHMWPE, ensuring excellent resistance against fuming acids, corrosive chemicals, and pickling agents.
Can these pumps be used in hazardous environments?
Yes, our PP/PVDF pumps are available with both standard TEFC motors and Flame-Proof (FLP) motors to ensure safe operation in hazardous chemical processing zones.
What industries use Alpha Global's non-metallic pumps?
These pumps are widely used in chemical plants, fertilizer industries, electroplating units, pharmaceutical labs, and effluent treatment plants (ETP) where metallic contamination must be avoided.
