Barrel Pump
Barrel Pumps Manufacturer
At Alpha Global, we offer a comprehensive range of Barrel Pumps (Drum Pumps) designed to handle everything from low-viscosity solvents to highly viscous liquids like petroleum jelly and adhesives. Each pump is engineered for safety, efficiency, and durability, ensuring reliable transfer of chemicals, fuels, and other industrial liquids.
Barrel Pumps

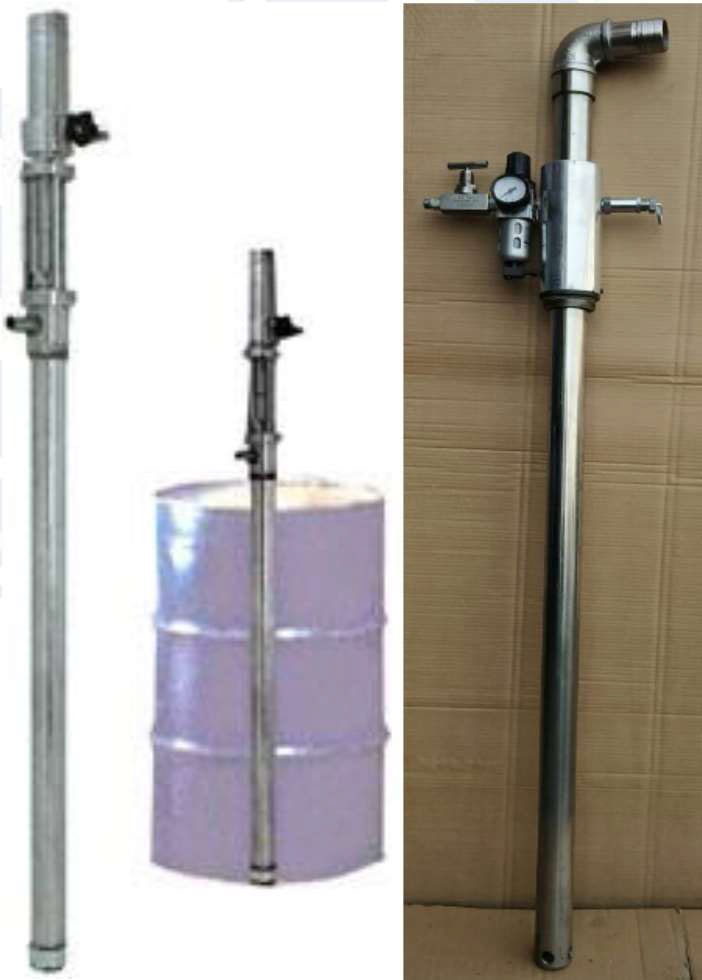

Alpha Global produces and supplies Air Operated Barrel Pumps, which are also known as Pneumatic Barrel Pumps or maintenance-free barrel pumps. These pumps operate by employing a unique pumping principle. This barrel pump is useful for the safe and efficient handling of highly corrosive chemicals, solvents, acids, petroleum products, diesel oil, fuel oils, plating solutions, and toxic chemicals. It eliminates the danger of spillage and explosion hazards. The pump can be directly inserted into the barrel using the threading on the pump adapter. It sucks the liquid from the bottom, so there are fewer chances of leftover material. It does not have any type of motor and therefore requires virtually zero maintenance.
| Capacity | 80 Lpm. |
| Head | 15 Mtrs. |
| Operating Pressure | 3 to 6 |
| Material of construction | S.S.304/316 |
| Discharge | 1 Inch. |
| Temperature | 120° C. |

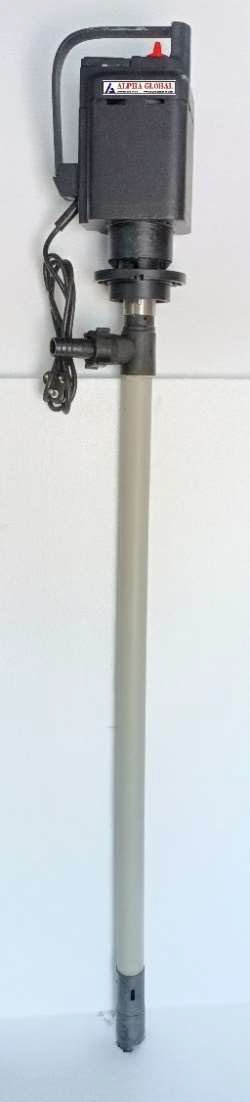

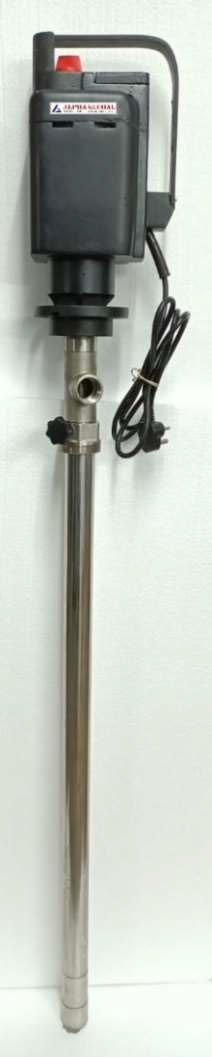

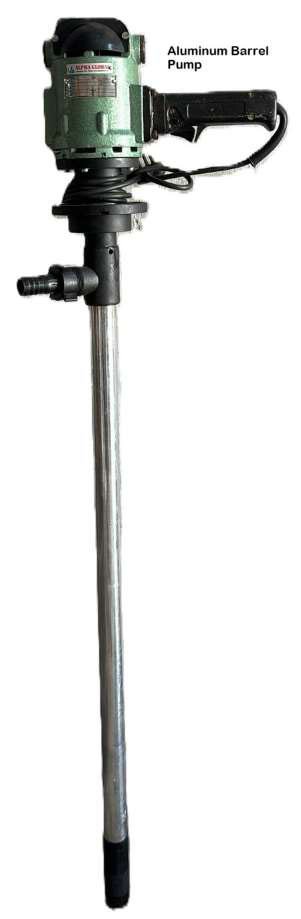

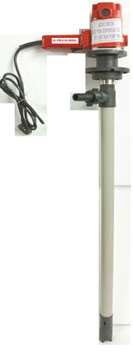

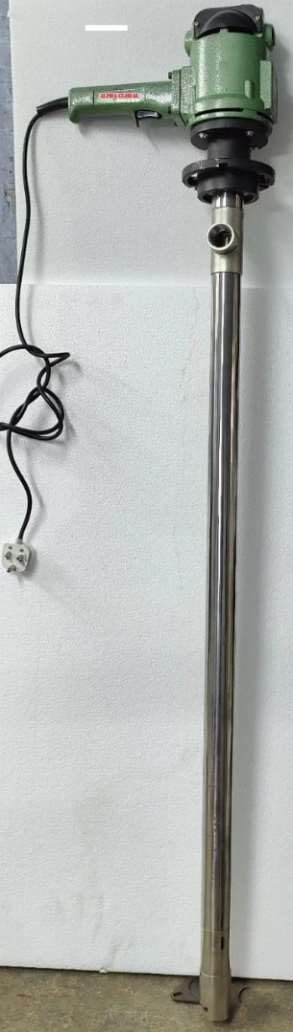

Alpha Global offers different types of Barrel Pumps in a wide range. These motorized barrel pumps are portable, with a small size and light weight, and are suitable for the standard barrel emptying process. The pumps are made of stainless steel SS-316, Aluminium, PP, and PVDF. The advanced and technically simple construction of the pumps ensures an efficient and reliable operation coupled with easy strip-down maintenance. They are used for barrel unloading and transferring low/high viscosity liquids.
Application : Lubricants used for wire drawing, Electroplating solutions, Weak Solvents LDO or HSD for furnaces, Pickling Agents, Degreasing solutions, White Spirit, Thinners (Paint shop), Hydraulic Acid, Thermic fluids, Transformer Oil, Effluent Treatment Chemicals, Coolants, De watering Pits, Filling of overhead tanks, Dilute , H2SO4, HF, NaOH, Formic Acid, salt solution, pesticides, intermediates & toxic chemicals
| Outer tube diameter | 40 mm. |
| Speed | 14000 RPM. |
| Voltage | 220 VAC, 50 Hz, 1Phase. |
| Discharge | Up to 110LpM |
| Head | Up to 25 Meter. |

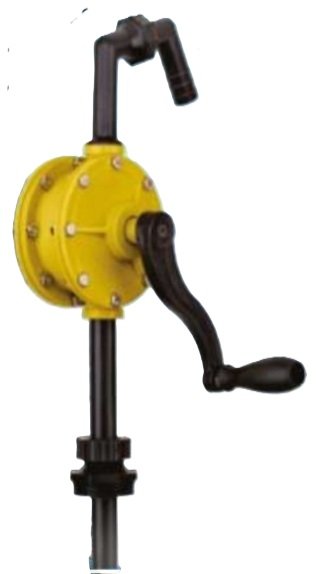

Alpha Global offers PP (Poly Propylene) made hand-operated barrel emptying pumps. This is a rotary-type pump and is one of the most popularly used handle-operated pumps. It has a 1″ / 25mm size delivery and is made of plastic (Poly Propylene).
Application
 This pump is for dispensing water-based media, antifreeze, Urea, Ad blue, DEF, Benzene, detergents, Glycerine, and mild chemicals , in addition to all petroleum-based products.
Do Not Use this pump for:
Acetone, Lacquer, Mineral Oils, Solvents, Turpentine, Adhesive material etc.

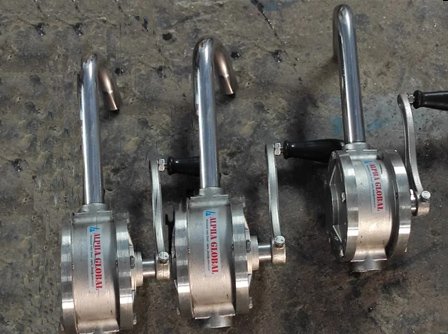

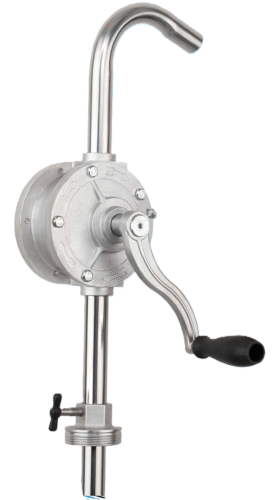

Alpha Global’s SS (Stainless Steel) made Hand Operated Barrel Pump is a very popularly used handle-operated pump. It is a rotary-type pump. It has a 1″ / 25mm size Delivery and is made of Stainless Steel SS 316 / SS 304. Vanes, Seal & Packings are made of Teflon. The capacity is 200ml-250ml per Revolution.
Application It is for dispensing water-based media, antifreeze, Urea, Ad-blue, DEF, Benzene, detergents, Glycerine, Mild Chemicals etc. , in addition to use with all petroleum based products.
Not Used for:Â Powder form material & sand content, Alkalis Material, Adhesive material etc.

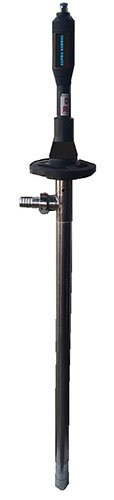

Alpha Global is a producer and supplier of Pneumatic Motor Operated Barrel Pumps, which are also commonly known as Pneumatic Barrel Pumps. This pump is useful for the safe and efficient handling of highly inflammable chemicals, solvents, acids, petroleum products, diesel oil, fuel oils, plating solution, and toxic chemicals. It is best suitable for low viscous inflammable liquids like petroleum, solvents, and chemicals.
| Pneumatic Motor | 21CFM/21000RPM |
| Size | 25mm Delivery x 40mm Suction x 1000mm Barrel Length. |
| Material of Construction | All parts in contact with Liquid: SS-316/PP/PVDF |
| Discharge | 70 LPM. |
| Head | 10 meter. |

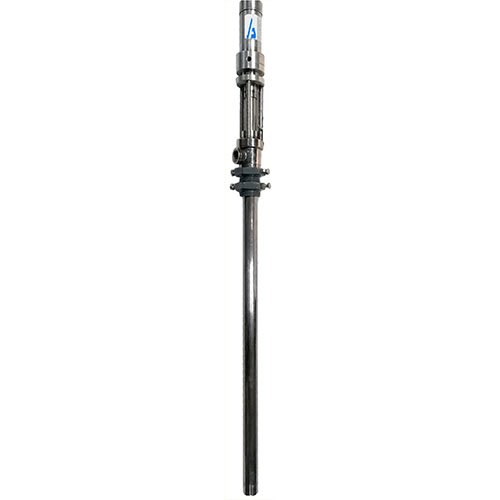

This pump operates with pneumatic pressure. Its operation is compatible with all types of viscous liquid. The pump head discharge is 25 feet, and the volume of liquid to be delivered can be adjusted by using a simple air flow adjustment. It features a ball valve for controlling the flow. The pump is easy to dismantle and clean as per GMP (Good Manufacturing Practice) requirements
| TYPE | Pneumatic Piston |
| MOC | The transmission system is made from a special grade of Brass and Aluminum , and the parts that come in contact with the liquid are SS 316/PTFE |
| AIR INLET | 1/2 inch. |
| Discharge Pressure | 5.0 cm |
| SHUT OFF HEAD | 50 Meter. |
| MAX FLOW | 40 Lit/Min. |
| LENGTH/DIA-mm | 1000/42. |
| POWER | Air Pressure. |
| DUTY CYCLE | Continuous |
| WEIGHT | 5/9 Kg. |
Alpha Global offers Screw type Barrel Pumps to transfer viscous liquids. These pumps are used to transfer highly viscous liquids from barrels, such as petroleum jelly, adhesives, creams, pastes, syrups, and liquid glucose. They are available with both normal and gear motors.
| MOC | Stainless Steel. |
| MAX FLOW | UP TO 100 LTR/MIN. |
| HEAD | UP TO 60 MTR. |
| LENGTH/DIA-MM | 1000/42-52 MM. |
| ROTOR | Stainless Steel. |
| STATOR | VITON/HIGH NITRILE/ EPDM/NEOPRENE. |
| POWER | 440V AC, 50Hz. 1/1.5/3HP (1 PHASE ON REQUEST). |
| DUTY CYCLE | CONTINUOUS. |
Alpha Global's Barrel Pumps ?
Portable & Efficient
Light weight, portable use, and saves considerable time and labour.
Safe Handling
Suitable for aggressive, corrosive & flammable liquids, with models available WITH FLP (Flame Proof) MOTOR.
Seal-less Design
Features a Seal less Design to ensure reliable operation.
High Versatility
Handles a wide range of low and high viscous liquids. Screw type and Piston type pumps are also available for thick liquids.
Easy Maintenance
Modular Design Construction assures easy strip-down maintenance.
Durable Construction
Available in high-quality materials including SS-316, Aluminium, PP, and PVDF.
Industrial Barrel Pumps
Alpha Global's Barrel Pumps are highly versatile, portable pumps designed primarily for safely and efficiently transferring liquids out of standard drums and barrels, suitable for a wide range of fluid viscosities and chemical properties.
-
Barrel unloading and transferring Low/High viscous liquids
-
Handling Aggressive, Corrosive & Flammable Liquids
-
Safe and efficient handling of highly Inflammable Chemicals, solvents, acids, petroleum products, diesel oil, and fuel oils
-
Transferring highly viscous liquids such as Petroleum Jelly, Adhesives, Creams, Pastes, Syrups, and Liquid Glucose
-
Handling Thick type liquids
-
Transfer of Oil and Solvent
-
Pumping Lubricants used for wire drawing
-
Used in Electroplating
-
Transferring plating solution and toxic chemicals
-
Suitable for Chemical Industries
Watch Our Product Video
Drum Barrel Pumps
Why should I use an Air Operated Barrel Pump for chemicals?
Air operated (pneumatic) barrel pumps are safer for handling highly corrosive and inflammable chemicals because they do not have an electric motor, eliminating spillage and explosion hazards in hazardous zones.
Which barrel pump is best for thick liquids like petroleum jelly or adhesives?
Our Screw Type Barrel Pumps are specifically designed to transfer highly viscous liquids such as petroleum jelly, adhesives, creams, and syrups from drums at rates up to 100 LPM.
Do you offer flame-proof motorized barrel pumps?
Yes, our motorized barrel pumps can be equipped with FLP (Flame Proof) motors to ensure safe operation when transferring flammable solvents, thinners, or petroleum products.
What materials of construction (MOC) are available for your barrel pumps?
To ensure chemical compatibility, we offer barrel pumps in Stainless Steel (SS-316/SS-304), Polypropylene (PP), PVDF, and Aluminium.
What is the discharge capacity of your motorized barrel pumps?
Our motorized barrel pumps offer a high discharge capacity of up to 110 LPM and a head of up to 25 meters, making them ideal for standard barrel emptying processes.
