Variable Speed Peristaltic Pumps
Variable Speed Peristaltic Pump Manufacturer in India
Alpha Global's Variable Speed Peristaltic Pumps are utilized across a wide range of industries for processes that require highly precise flow control, variable chemical dosing, and gentle fluid transfer. Engineered for applications where flow rates must be adjusted dynamically based on changing process parameters, these positive displacement pumps offer unparalleled flexibility. By isolating the fluid entirely within a heavy-duty tubing element, they ensure leak-proof, contamination-free operation in both automated and manual setups.
Industrial Variable Speed Peristaltic Hose Pumps
High-accuracy, intelligent dosing and dispensing systems engineered for automated process control and micro-step fluid management. Featuring advanced communication protocols, these smart drives are ideal for precise batch filling, proportional chemical mixing, and laboratory automation.
These are portable and smart peristaltic pumps for small-volume dosing. The brochure provides general features for the series but does not list specific technical specifications for each model within this series.
- Simple Basic Peristaltic Pump: Features include adjustable speed and reversible flow direction.
- Simple Basic with RPM Display: Features include a digital display to show the RPM.
- Simple Basic with RPM Display & Timer: Features include a digital display for RPM and a timer function.
- FEATURES:
M.S. Powder coated box - Cast aluminium stage with Black Epoxy coating
- Rollers made of Cast Nylon
- Electronic speed control/Adjustable
- Reversible flow direction
PP-27X MODELS AVAILABLE IN DIFF. FLOW RATES:
- PP-271 – Flow rate 6 ml to 60 ml per Hour (1ml/min)
- PP-272 – Flow rate 10 ml to 80 ml per minute
- PP-273 – Flow rate 80 ml to 650 ml per minute
- PP-274 – Flow rate 110 ml to 900 ml per minute
These variable-speed peristaltic pumps feature a PMDC motor and offer a range of flow rates and tubing sizes.
Model: P-120 VS
| Speed | 10-100 RPM |
| Flow Rate | 90 ml/hr – 5.0 Ltr/hr |
| Tubing (ID) | 1-3 mm |
| Motor | PMDC |
| Power Supply | 230V, 50Hz, single-phase AC |
Model: P-120 S
| Speed | 10-200 RPM |
| Flow Rate | 120 ml/hr – 24 Ltr/hr |
| Tubing (ID) | 1-5 mm |
| Motor | PMDC |
| Power Supply | 230V, 50Hz, single-phase AC |
Model: P-120 L
| Speed | 10-200 RPM |
| Flow Rate | 1.2 Ltr/hr – 156 Ltr/hr |
| Tubing (ID) | 3-10 mm |
| Motor | PMDC |
| Power Supply | 230V, 50Hz, single-phase AC |
Model: P-120 EL
| Speed | 20-200 RPM |
| Flow Rate | 25 Ltr/hr – 1000 Ltr/hr |
| Tubing (ID) | 8-20 mm |
| Motor | AC |
| Power Supply | 230V, 50Hz, single-phase AC |
Model: P-120 LS
| Speed | 20 – 200 RPM |
| Flow Rate | 6.0 ml/hr – 300 Ltr/hr |
| Tubing (ID) | 5-12 mm |
| Motor | PMDC |
| Power Supply | 230V, 50Hz, single-phase AC |
Model: P-120 ELS
| Speed | 20 – 200 RPM |
| Flow Rate | 50 ml/hr – 3000 Ltr/hr |
| Tubing (ID) | 10-25 mm |
| Motor | AC |
| Power Supply | 230V, 50Hz, single-phase AC |
These variable-speed pumps feature a PMDC motor and offer a range of flow rates and tubing sizes.
Model: P-110 VS
| Speed | 0.001- 0.99, 0.01 – 9.99, 0.1 – 99.9 RPM |
| Flow Rate | 0.00015 – 0.85 ml/min, 0.0015 – 8.5 ml/min, 0.015 – 85 ml/min |
| Tubing (ID) | 1mm – 3mm |
| Motor | DC Stepper (Cont.) |
Model: P-110 S
| Speed | 0.001 – 0.99, 0.01 – 9.99, 0.1 – 99.9, 1.0 – 199.9 RPM |
| Flow Rate | 0.0002 – 2.5 ml/min, 0.002 – 25 ml/min, 0.02 – 250 ml/min, 0.2 – 500 ml/min |
| Tubing (ID) | 1mm – 5mm |
| Motor | DC Stepper (Cont.) |
Model: P-110 LS
| Speed | 0.001 – 0.99, 0.01 – 9.99, 0.1 – 99.9, 1.0 – 180 RPM |
| Flow Rate | 0.006 – 25 ml/min, 0.06 – 250 ml/min, 0.6 – 2500 ml/min, 6.0 – 4500 ml/min |
| Tubing (ID) | 5mm – 12mm |
| Motor | DC Stepper (Cont.) |
Model: P-110 L
| Speed | 0.001 – 0.99, 0.01 – 9.99, 0.1 – 99.9, 1.0 – 199.9 RPM |
| Flow Rate | 0.002 – 10 ml/min, 0.02 – 100 ml/min, 0.2 – 1000 ml/min, 2.0 – 2000 ml/min |
| Tubing (ID) | 3mm – 8mm |
| Motor | DC Stepper (Cont.) |
ALPHA GLOBAL Peristaltic Pump with Basic Features high accuracy of approximately 1% and different flow rate, Also provided with the features of adjustable volumetric Dosing and adjustable time interval duration between two dosing, Single Channel, Multi-channel and DC Stepper motor run with soft key Operations and Digital Display.
Model: P-100 VS-100
| Speed | 0.1 – 99.9 ml/min RPM |
| Tubing (ID) | 1-3 mm |
| Motor | DC Stepper (Cont.) |
| Other Features | DC Stepper (Cont.) |
Model: P-100 S-100
| Speed | 0.1 – 199.9 ml/min RPM |
| Tubing (ID) | 1-5 mm |
| Motor | DC Stepper (Cont.) |
| Other Features | Adjustable volumetric dosing and time interval duration |
Model: P-100 S-200
| Speed | 0.1 – 499.9 ml/min RPM |
| Tubing (ID) | 1-5 mm |
| Motor | DC Stepper (Cont.) |
| Other Features | Adjustable volumetric dosing and time interval duration |
Model: P-100 L-100
| Speed | 0.1 – 999.9 ml/min RPM |
| Tubing (ID) | 3-8 mm |
| Motor | DC Stepper (Cont.) |
| Other Features | Adjustable volumetric dosing and time interval duration |
Model: P-100 L-200
| Speed | 0.1 – 1999 ml/min RPM |
| Tubing (ID) | 3-8 mm |
| Motor | DC Stepper (Cont.) |
| Other Features | Adjustable volumetric dosing and time interval duration |
Model: P-100 LS-100
| Speed | 1 – 2999 ml/min RPM |
| Tubing (ID) | 5-12 mm |
| Motor | DC Stepper (Cont.) |
| Other Features | Adjustable volumetric dosing and time interval duration |
Model: P-100 LS-200
| Speed | 1 – 4199 ml/min RPM |
| Tubing (ID) | 5-12 mm |
| Motor | DC Stepper (Cont.) |
| Other Features | Adjustable volumetric dosing and time interval duration |

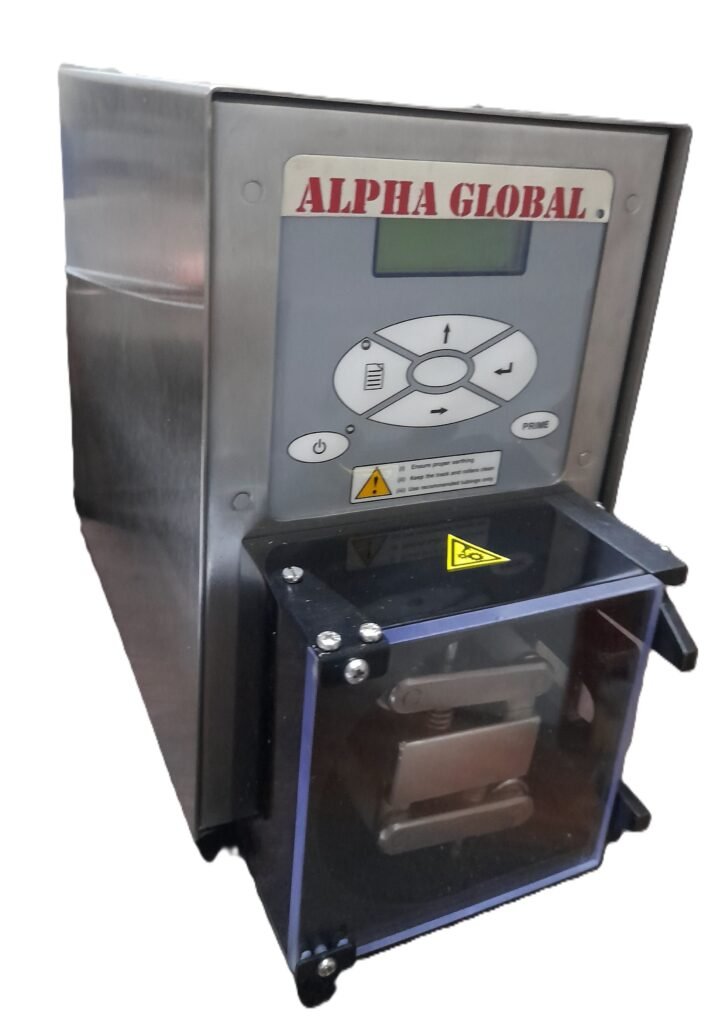

Alpha Global's precise digital peristaltic pump
Fluid Isolation
The fluid only contacts the inner tubing, ensuring hygienic and safe pumping.
Adjustable Flow Control
Variable-speed drives allow users to adjust flow rates precisely to match dynamic process requirements.
Zero Cross-Contamination
Complete isolation of the media ensures zero contamination, making it ideal for high-purity sterile fluids.
Bi-Directional Flow
Reversible motor functionality allows easy fluid pumping in both directions and simple line clearing.
Simplified Upkeep
No internal valves, seals, or glands require maintenance, leaving the tube as the sole wear component.
Self-Priming Efficiency
High suction lift allows the pump to draw fluids immediately and run dry without internal damage.
System Integration
Equipped with analog or digital control interfaces (like 4-20mA or RS485) for seamless automation.
Smart Digital Peristaltic Pumps
Alpha Global’s Variable Speed Peristaltic Pumps are exported worldwide for:
-
Agriculture, Biomass, Biogas, Bio Ethanol Industry
-
Fishes & Sea Food, Cut Vegetable, Grapes & Fruits processing Industry
-
Pharmaceuticals Industry
-
Food Product Processing Industry
-
Paints & Coatings Industry
-
Pulps & Papers Industry
-
Foam Concentrate / Ceramic Construction Industry
-
Various other applications like Commercial, Laboratory and Industrial
OEM peristalsis Hose pumps
Why choose Alpha Global as your peristaltic pump manufacturer?
What industries use your peristaltic pumps?
Do you provide Flame Proof peristaltic pumps for hazardous areas?
What is the difference between Fixed Speed and Variable Speed peristaltic pumps?
What are the benefits of using a Multi-Channel peristaltic pump?
Can these pumps handle corrosive chemicals?
Yes. Since the fluid only contacts the specialized tubing and not the pump mechanism, our peristaltic pumps are ideal for handling highly corrosive, abrasive, or shear-sensitive fluids without damaging the equipment.
