FIG Pumps
FIG Pumps Manufacturer
At Alpha Global, we specialize in manufacturing high-performance Gear Pumps specifically Injection Gear Pumps (FIGP) and Internal Gear Pumps designed to meet the diverse needs of various industries. Our FIG pumps are engineered for efficiency, durability, and reliability, ensuring optimal performance in handling viscous and abrasive fluids.
Industrial FIG Pumps

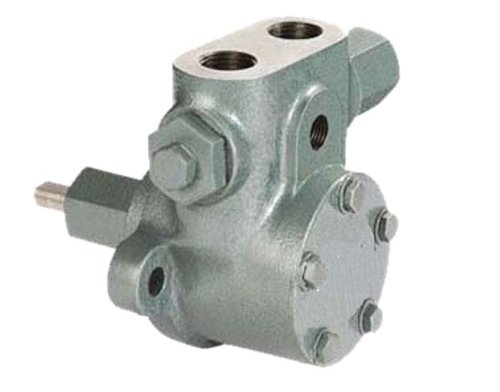

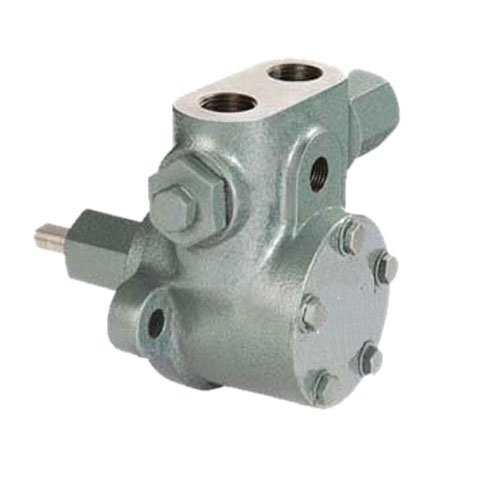

Alpha Global produces and supplies a wide range of FIG internal gear pumps, commonly used as high-pressure gear pumps for oil burners and hydraulic drives. These pumps feature a barrel made of hydraulic cast iron and high-quality steel gears, ensuring durability under heavy-duty operations. They are designed to handle a variety of oils, including gas oil, medium, heavy, and very heavy oils, as well as LDO, FO, HSD, and LSHS.
Key Features
- Self-Inducing: Capable of self-priming for efficient startup.
- Adjustable Pressure: Progressively adjustable pressure regulator to suit system requirements.
- Mounting Versatility: Can be mounted horizontally or vertically with a tight shaft seal to prevent leakage.
- Integrated Bypass: Available with internal bypass or external top bypass for system protection.
- Customizable Relief: Offered with or without a pressure relief valve.
Technical Specifications
| Feature | Details |
|---|---|
| Capacity Range | 50 to 6000 LPH |
| Maximum Pressure | Up to 30 kg/cm² |
| Operating Speed | 1440 RPM / 2880 RPM |
| Temperature Limit | Maximum liquid temperature up to 200°C |
| Viscosity Range | 5 cSt to 450 cSt |
| Suction & Delivery | 3/8″ to 1″ BSP (model dependent) |
In addition to internal designs, Alpha Global offers Positive Displacement Bare Shaft External Gear Pumps. These pumps employ a twin rotary gear principle and are highly efficient for transferring both viscous and semi-viscous liquids.
Key Features
Self-Priming: Provides a suction lift of up to 5 meters at mean viscosity.
- Pulse-Free Delivery: The helical gear design ensures constant volume delivery without pulsation.
- Self-Lubricated: Bearing surfaces are lubricated by the pumped fluid, eliminating the need for external lubrication.
- Jacketed Options: SVRN Jacketed models are available specifically for handling bitumen and other temperature-sensitive liquids.
- High Efficiency: Designed with close tolerances to minimize mechanical losses and power consumption.
Technical Specifications
| Feature | Details |
| Material (MOC) | Cast Iron (FG 200) or Stainless Steel (SS-316/316L/CF-8M) |
| Discharge Capacity | 10 LPM to 500 LPM (standard range) |
| Maximum Pressure | Up to 10 kg/cm² |
| Pipe Size Range | 1/4″ BSP to 3″ BSP |
| Standard Speed | 1440 RPM |
Alpha Global's FIG Pumps ?
High-Pressure Design
A specialized High Pressure Gear Pump capable of handling pressure up to 30 k/g Cm2
Broad Chemical Compatibility
Suitable for an extensive range of industrial fluids, including Lubricants, Weak Solvents, Thermic fluids, Transformer Oil, and various Acids (such as Hydraulic Acid, Dilute H2SO4 , HF).
Versatile Application
Ideal for Pickling Agents, Degreasing solutions, Electroplating solutions, Effluent Treatment Chemicals, and intermediates & toxic chemicals.
Performance Range
Models are available with capacities starting from 50 LPH (at 1440 RPM).
Customization Options
Available in different sizes, configurations, and materials to meet specific requirements.
Expertise
Over a decade of experience in delivering quality pump solutions.

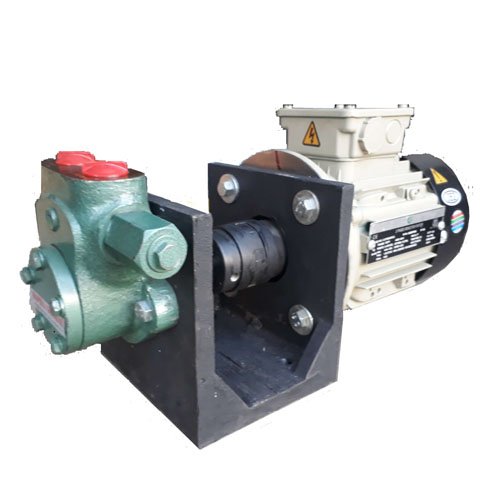

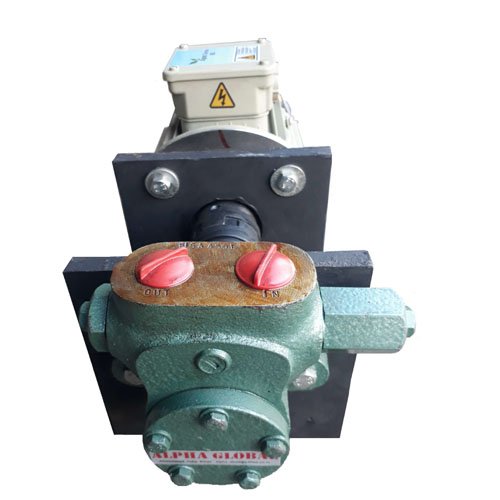

Internal Gear FIG Pump
The Alpha Global FIG (Internal Gear) Pump is designed as a High Pressure Gear Pump and is suitable for handling a wide range of fluids, particularly oils and various chemicals:
-
Lubricants used for wire drawing.
-
Thermic fluids and Transformer Oil.
-
General Lubricants.
-
Various Acids, including Hydraulic Acid, Dilute H
-
Pickling Agents.
-
Weak Solvents.
-
Degreasing solutions.
-
Electroplating solutions.
-
Effluent Treatment Chemicals.
-
Intermediates and Toxic Chemicals.
