Peristaltic Pumps
Introduction
Peristaltic Pumps
Alpha Global is a premier manufacturer, supplier, and exporter of highly precise and quality Peristaltic Pumps. Designed for both laboratory and heavy-duty industrial use, our pumps offer accurate dosing and fluid transfer without any contact between the pump and the liquid. We provide a wide range of solutions, from compact OEM fix-speed modules to advanced digital variable-speed systems, exported to chemical, pharmaceutical, and research sectors worldwide.
Our Range of
Peristaltic Pumps
Alpha Global produces and supplies a comprehensive range of Peristaltic Pumps, including Simple Basic, Smart Digital, Multi-Channel, and Flame Proof (FLP) models. These pumps operate on the principle of peristalsis, where the fluid is contained within a flexible tube and moved by rotating rollers. Because the liquid only touches the tubing, these pumps are ideal for sterile, corrosive, or abrasive fluids, ensuring zero contamination and easy maintenance.

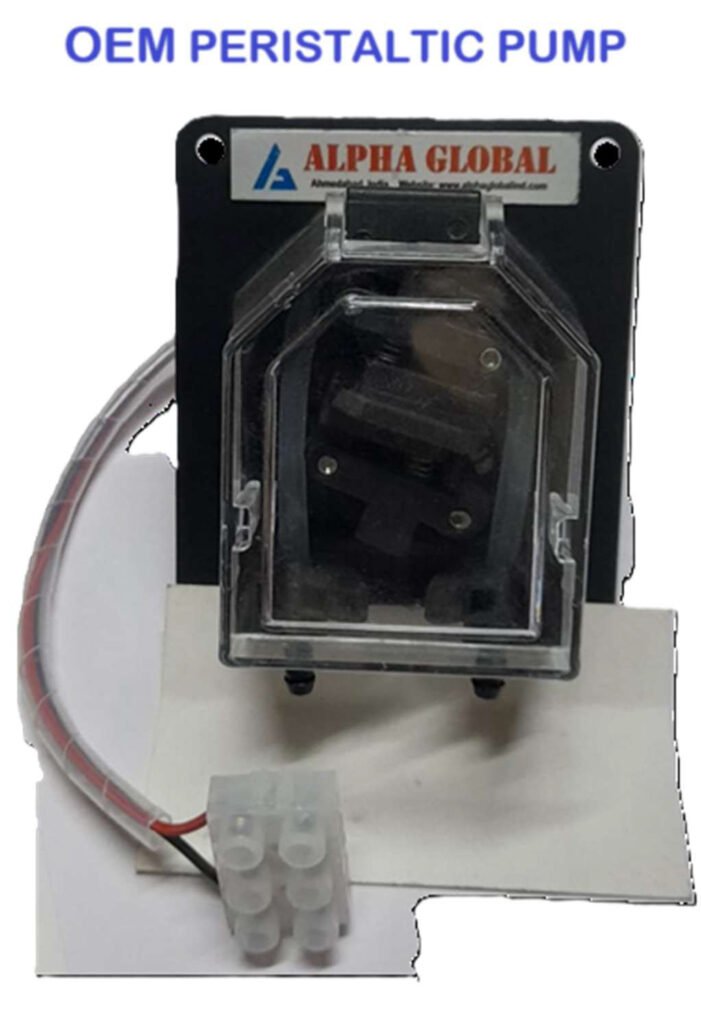

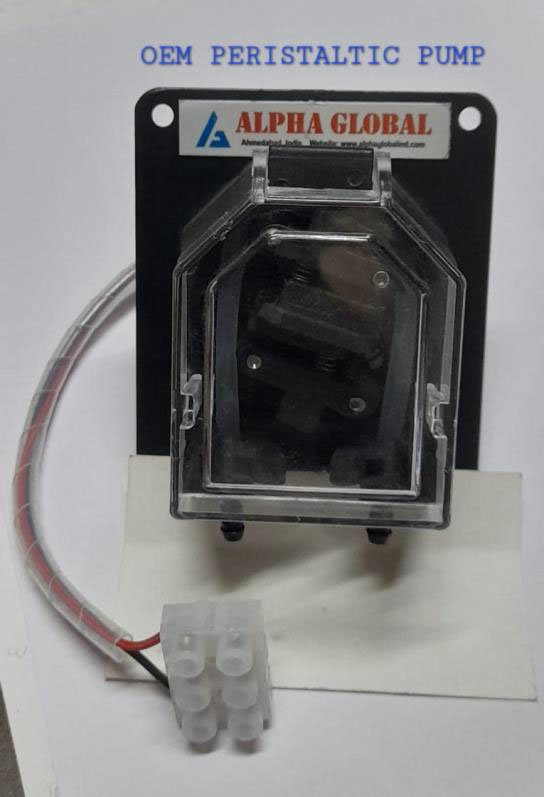

OEM Peristaltic Pumps
Technical Specifications
| Model | P120VS-FSP-85 |
| Speed | 85 RPM |
| Flow Rate | 50 ml/min @ 24V DC |
| Tubing | 3mm I.D. with 1mm wall thickness |
| Pump Head | G.F. Nylon |
| Rollers | Carbon-filled Nylon |
| Motor | 24VDC Geared Motor |
| Supply | 24 VDC |
| Power Consumption | 12 Watts (Max) |
| Weight | 250 grams |
Technical Specifications
| Model | P120VS-Fix Speed-220 |
| Speed | 220 RPM |
| Flow Rate | 250 ml/min |
| Tubing | 4mm I.D. with 1mm wall thickness |
| Pump Head | G.F. Nylon |
| Rollers | Carbon-filled Nylon |
| Motor | 24VDC Geared Motor |
| Supply | 24 VDC |
| Power Consumption | 12 Watts (Max) |
| Wight | 250 grams |
Technical Specifications
| Model | P120L-FSP-FO |
| Approximate Flow Rate | 1000 ml/min with 6 mm I.D. tube and 1800 ml/min with 8 mm I.D. tube |
| Suitable Tubes | 6 to 8mm I.D. with 2mm wall thickness |
| Pump Head | Anodized Aluminum |
| Rollers | Carbon-filled Nylon |
| Motor | 24VDC, PMDC geared motor |
| Speed | 200 RPM (Max) |
| Power Consumption | 24 Watts (Max) |
| Supply | 24VDC, DC |
| Weight | 400 grams |
These are portable, smart peristaltic pumps for small-volume dosing. The brochure provides general features for the series but does not list specific technical specifications for each model within this series.

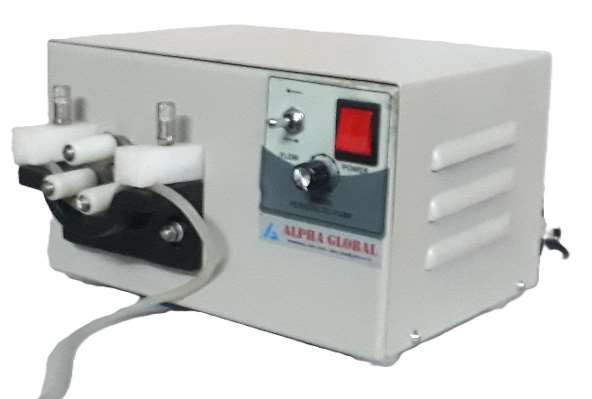

- Simple Basic Peristaltic Pump: Features include adjustable speed and reversible flow direction.

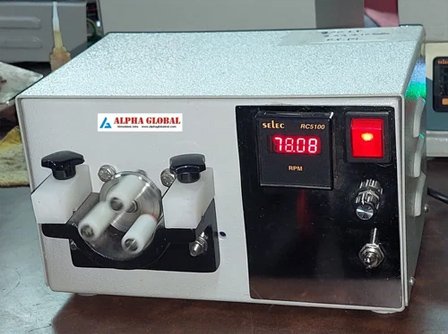

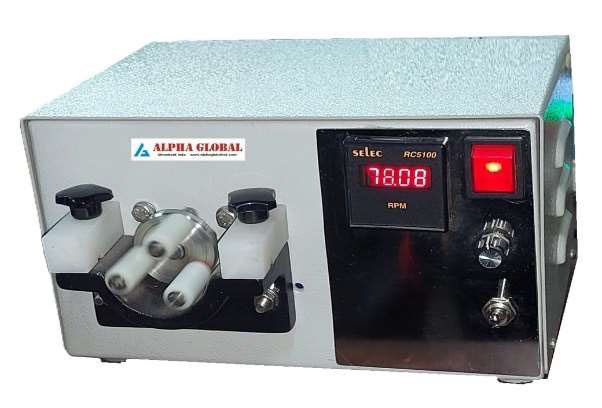

- Simple Basic with RPM Display: Features include a digital display to show the RPM.

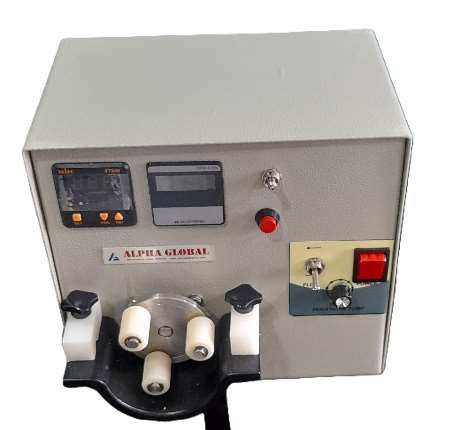

- Simple Basic with RPM Display & Timer: Features include a digital display for RPM and a timer function.
- FEATURES:
M.S. Powder coated box - Cast aluminium stage with Black Epoxy coating
- Rollers made of Cast Nylon
- Electronic speed control/Adjustable
- Reversible flow direction

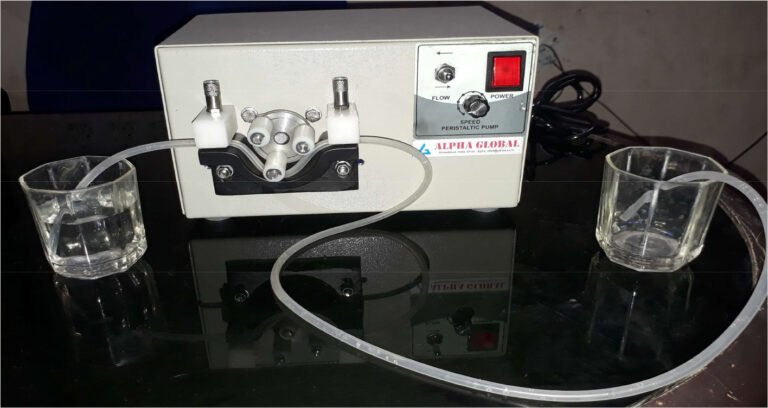

PP-27X MODELS AVAILABLE IN DIFF. FLOW RATES:
- PP-271 – Flow rate 6 ml to 60 ml per Hour (1ml/min)
- PP-272 – Flow rate 10 ml to 80 ml per minute
- PP-273 – Flow rate 80 ml to 650 ml per minute
- PP-274 – Flow rate 110 ml to 900 ml per minute
These variable-speed pumps feature a PMDC motor and offer a range of flow rates and tubing sizes.
Model: P-120 VS
| Speed | 10-100 RPM |
| Flow Rate | 90 ml/hr – 5.0 Ltr/hr |
| Tubing (ID) | 1-3 mm |
| Motor | PMDC |
| Power Supply | 230V, 50Hz, single-phase AC |
Model: P-120 S
| Speed | 10-200 RPM |
| Flow Rate | 120 ml/hr – 24 Ltr/hr |
| Tubing (ID) | 1-5 mm |
| Motor | PMDC |
| Power Supply | 230V, 50Hz, single-phase AC |

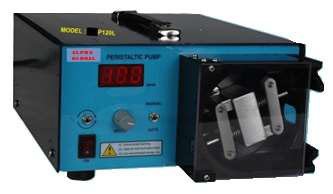

Model: P-120 L
| Speed | 10-200 RPM |
| Flow Rate | 1.2 Ltr/hr – 156 Ltr/hr |
| Tubing (ID) | 3-10 mm |
| Motor | PMDC |
| Power Supply | 230V, 50Hz, single-phase AC |

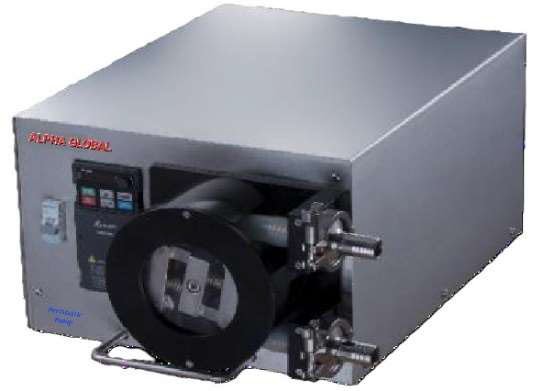

Model: P-120 EL
| Speed | 20-200 RPM |
| Flow Rate | 25 Ltr/hr – 1000 Ltr/hr |
| Tubing (ID) | 8-20 mm |
| Motor | AC |
| Power Supply | 230V, 50Hz, single-phase AC |
Model: P-120 LS
| Speed | 20 – 200 RPM |
| Flow Rate | 6.0 ml/hr – 300 Ltr/hr |
| Tubing (ID) | 5-12 mm |
| Motor | PMDC |
| Power Supply | 230V, 50Hz, single-phase AC |
Model: P-120 ELS
| Speed | 20 – 200 RPM |
| Flow Rate | 50 ml/hr – 3000 Ltr/hr |
| Tubing (ID) | 10-25 mm |
| Motor | AC |
| Power Supply | 230V, 50Hz, single-phase AC |
These variable-speed pumps feature a PMDC motor and offer a range of flow rates and tubing sizes.
Model: P-110 VS
| Speed | 0.001- 0.99, 0.01 – 9.99, 0.1 – 99.9 RPM |
| Flow Rate | 0.00015 – 0.85 ml/min, 0.0015 – 8.5 ml/min, 0.015 – 85 ml/min |
| Tubing (ID) | 1mm – 3mm |
| Motor | DC Stepper (Cont.) |
Model: P-110 S
| Speed | 0.001 – 0.99, 0.01 – 9.99, 0.1 – 99.9, 1.0 – 199.9 RPM |
| Flow Rate | 0.0002 – 2.5 ml/min, 0.002 – 25 ml/min, 0.02 – 250 ml/min, 0.2 – 500 ml/min |
| Tubing (ID) | 1mm – 5mm |
| Motor | DC Stepper (Cont.) |
Model: P-110 LS
| Speed | 0.001 – 0.99, 0.01 – 9.99, 0.1 – 99.9, 1.0 – 180 RPM |
| Flow Rate | 0.006 – 25 ml/min, 0.06 – 250 ml/min, 0.6 – 2500 ml/min, 6.0 – 4500 ml/min |
| Tubing (ID) | 5mm – 12mm |
| Motor | DC Stepper (Cont.) |
Model: P-110 L
| Speed | 0.001 – 0.99, 0.01 – 9.99, 0.1 – 99.9, 1.0 – 199.9 RPM |
| Flow Rate | 0.002 – 10 ml/min, 0.02 – 100 ml/min, 0.2 – 1000 ml/min, 2.0 – 2000 ml/min |
| Tubing (ID) | 3mm – 8mm |
| Motor | DC Stepper (Cont.) |

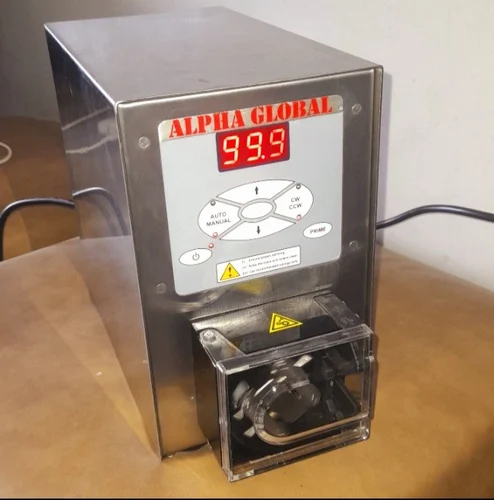

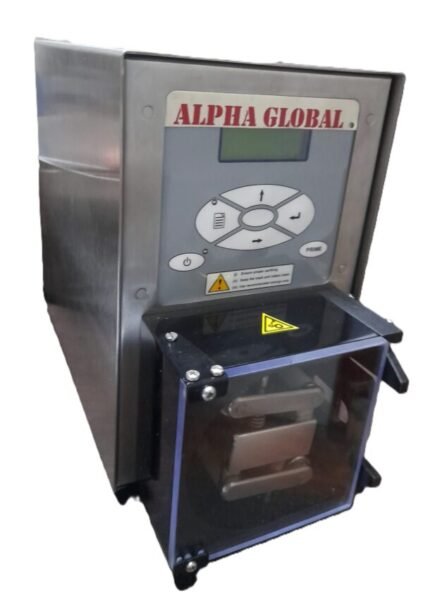

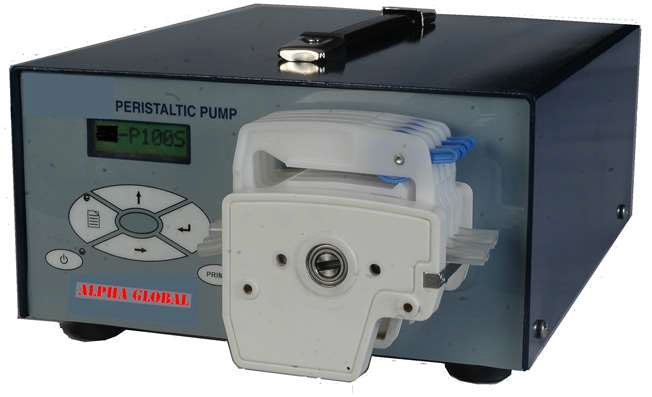

ALPHA GLOBAL Peristaltic Pump with Basic Features high accuracy of approximately 1% and different flow rate, Also provided with the features of adjustable volumetric Dosing and adjustable time interval duration between two dosing, Single Channel, Multi-channel and DC Stepper motor run with soft key Operations and Digital Display.
Model: P-100 VS-100
| Speed | 0.1 – 99.9 ml/min RPM |
| Tubing (ID) | 1-3 mm |
| Motor | DC Stepper (Cont.) |
| Other Features | DC Stepper (Cont.) |
Model: P-100 S-100
| Speed | 0.1 – 199.9 ml/min RPM |
| Tubing (ID) | 1-5 mm |
| Motor | DC Stepper (Cont.) |
| Other Features | Adjustable volumetric dosing and time interval duration |
Model: P-100 S-200
| Speed | 0.1 – 499.9 ml/min RPM |
| Tubing (ID) | 1-5 mm |
| Motor | DC Stepper (Cont.) |
| Other Features | Adjustable volumetric dosing and time interval duration |
Model: P-100 L-100
| Speed | 0.1 – 999.9 ml/min RPM |
| Tubing (ID) | 3-8 mm |
| Motor | DC Stepper (Cont.) |
| Other Features | Adjustable volumetric dosing and time interval duration |
Model: P-100 L-200
| Speed | 0.1 – 1999 ml/min RPM |
| Tubing (ID) | 3-8 mm |
| Motor | DC Stepper (Cont.) |
| Other Features | Adjustable volumetric dosing and time interval duration |
Model: P-100 LS-100
| Speed | 1 – 2999 ml/min RPM |
| Tubing (ID) | 5-12 mm |
| Motor | DC Stepper (Cont.) |
| Other Features | Adjustable volumetric dosing and time interval duration |
Model: P-100 LS-200
| Speed | 1 – 4199 ml/min RPM |
| Tubing (ID) | 5-12 mm |
| Motor | DC Stepper (Cont.) |
| Other Features | Adjustable volumetric dosing and time interval duration |

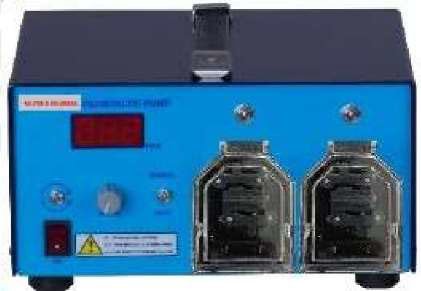

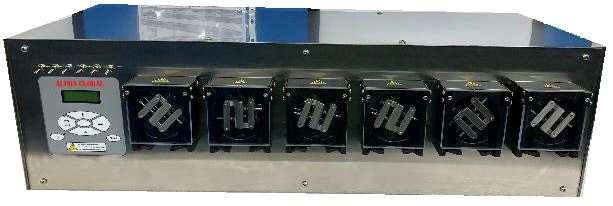

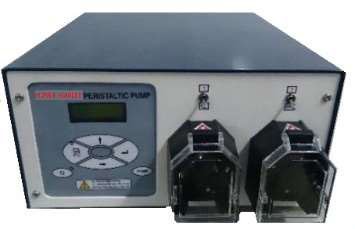

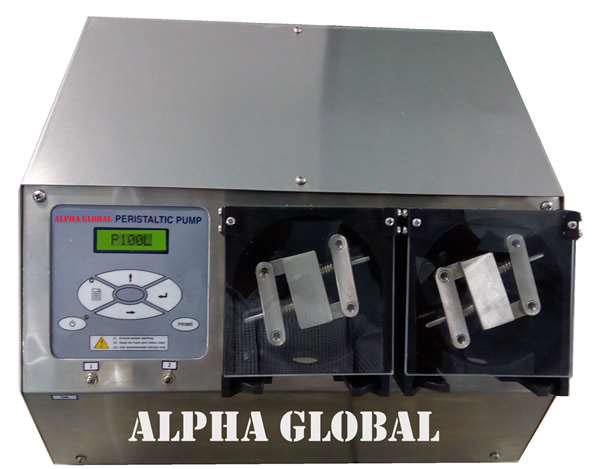

- Multi-Channel Peristaltic Pumps: ALPHA GLOBAL Peristaltic Pump available in Multiple Nos of channels in a same enclosure with all Basic Features and high accuracy with the range of different flow rates.
- Flame Proof (FLP) Peristaltic Pumps: ALPHA GLOBAL Peristaltic Pump available in a Flame Proof Enclosure Certified by “CIMFR” approved FLP/WP enclosure with S.S. Cover, IP:65, Zone 1&2, Gas Group IIB with Basic Features high accuracy with the range of different flow rates.
Why Choose
Alpha Global's Peristaltic Pumps ?
Contamination-Free Transfer
Fluid only contacts the inner tubing, ensuring hygienic and safe pumping.
Self-Priming & Dry Running Capability
Efficient performance without damage even during dry operation.
Handles Viscous & Abrasive Fluids
Suitable for slurries, pastes, chemicals, and delicate liquids.
Gentle Pumping Action
Protects sensitive fluids from shear damage.
Easy Maintenance
Simple hose/tube replacement, minimal downtime.
Reversible Flow
Flexible operation with bidirectional pumping.
Leak-Free Operation
Safe for hazardous and corrosive chemicals.
Proven Expertise
Alpha Global ensures long-lasting performance with after-sales service and technical support.
Applications of
Peristaltic Pumps
The applications of the peristaltic pumps offered by Alpha Global include handling liquids even with solid particles and pressure up to 10 Bar.
- Agriculture, Biomass, Biogas, Bio Ethanol Industry
- Fishes & Sea Food, Cut Vegetable, Grapes & Fruits processing Industry
- Pharmaceuticals Industry
- Food Product Processing Industry
- Paints & Coatings Industry
- Pulps & Papers Industry
- Foam Concentrate / Ceramic Construction Industry
- Various other applications like Commercial, Laboratory and Industrial
