SS Rotary Lobe Pump

After
Before

Introduction

SS Rotary Lobe Pump

Our lobe pumps are manufactured with hardened SS and ground timing gears, ensuring continuous lubrication and high-quality performance without contamination. They provide smooth and noiseless operation due to their precise timing gears and highly precise, polished lobes.

Our Range of

SS Rotary Lobe Pump

We offer different types of lobe pumps to meet various requirements:

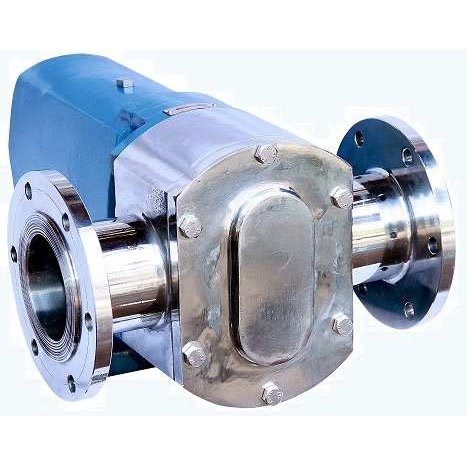

  • Connection types: Available with TC connections, Flange connections, or as a vertical flow line type.

  • Jacketed pumps: We offer jacketed lobe pumps for transferring liquids that require their working temperature to be maintained at a specific level during operation.

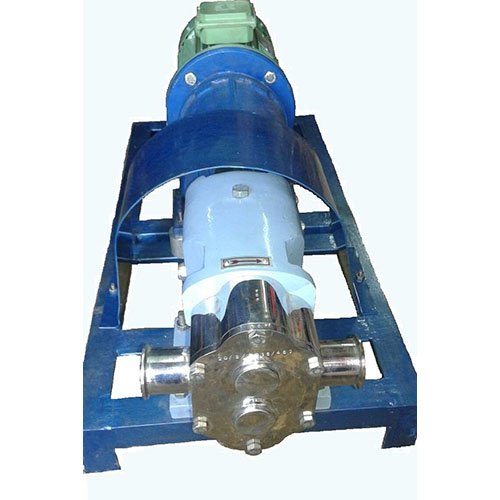

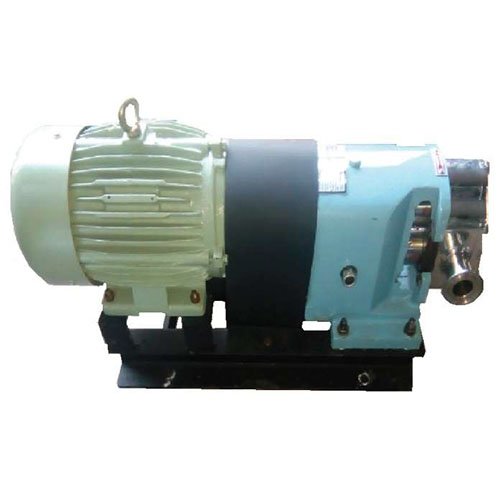

  • Mounting options: Pumps can be supplied as a bare pump, a pump with a couple set, a pump with a motor and couple set, or a complete set mounted on an MS/SS base frame or on an SS trolley with wheels for mobility.

Here is a flow rate chart for our lobe pumps:

Size (Inlet/Outlet)Capacity at 100 Rev (Liters)Max Speed (RPM)LPM at Max Speed
1/2″ x 1/2″5144070
1″ x 1″1096095
1 1/2″ x 1 1/2″16960150
2″ x 2″38600220
2 1/2″ x 2 1/2″60600360
3″ x 3″105500525
4″ x 4″135500670
Microsoft Word - Lobe Pmp BrochureMicrosoft Word - Lobe Pmp BrochureMicrosoft Word - Lobe Pmp BrochureMicrosoft Word - Lobe Pmp BrochureMicrosoft Word - Lobe Pmp BrochureMicrosoft Word - Lobe Pmp BrochureMicrosoft Word - Lobe Pmp BrochureMicrosoft Word - Lobe Pmp Brochure

Why Choose

Alpha Global's SS Rotary Lobe Pumps ?

Hygienic/Aseptic Design

Specifically designed to avoid contamination, making them ideal for the Cosmetics, Pharmaceutical, and Food industry.

Viscous Fluid Handling

Suitable for a wide range of products including Chocolate, Pastes, Gels, Syrups, Minced Meat, and Ointments.

Precision Performance

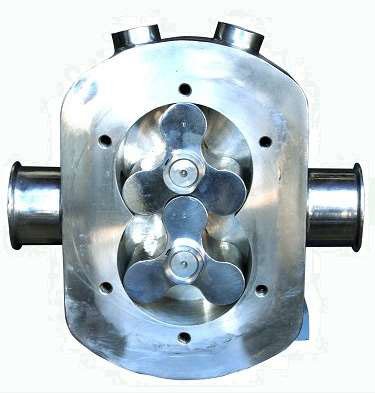

Provides smooth and noiseless operation due to highly precise and polished lobes and precision Timing Gears.

Durable Construction

Manufactured with hardened SS (Stainless Steel) and ground timing gears with continuous lubrication for constant, high-quality performance.

Temperature Regulation

Jacketed Lobe Pumps are offered for maintaining a liquid's working temperature at a sustainable level during operation.

Seal Integrity

Equipped with sturdy mechanical seals to ensure reliable operation.

Mobility

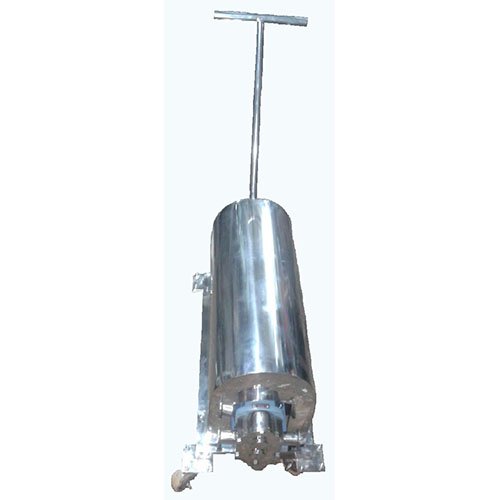

Can be installed on a trolley for easy movement and operation.

Applications of

SS Rotary Lobe Pumps

Alpha Global's Stainless Steel Rotary Lobe Pumps are high-hygiene, positive displacement pumps known for their gentle handling, which makes them ideal for viscous and shear-sensitive products in the Food, Cosmetic, and Pharmaceutical sectors.

  • Dairy Products
  • Viscous Edibles:
  • Beverages
  • Transferring Face Cream, Ointments, Lotions, Shampoos, and Tooth-paste
  • Pharmaceutical Industries
  • Oil Paste, Paint Pre-mix, Pigment Varnish, and Putty
  • Thick Coal Slurry, Undiluted Sludge, and Heavy Slurries
